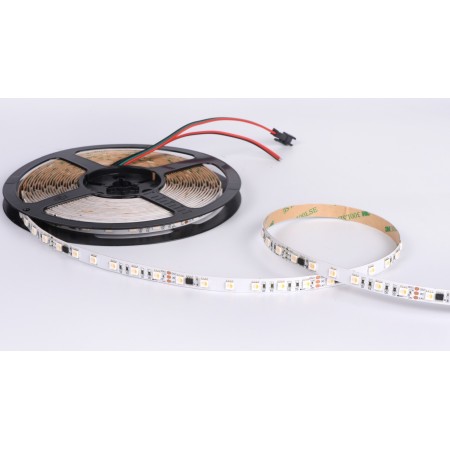

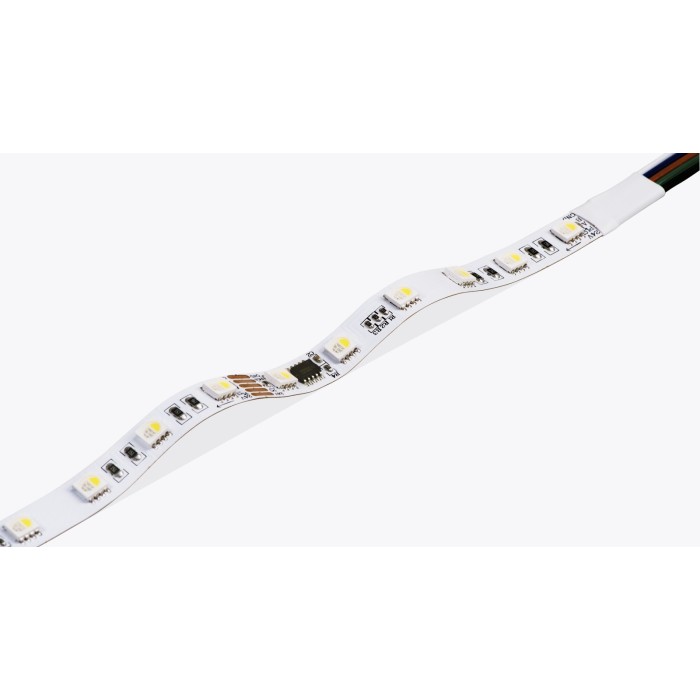

LumiBoard
| Categories | DigiFlex™ Pixel LED strip |
|---|---|
| Brand | SunStone Custom Hardware Manufacturer |
| Model NO. | TLI015-51 |
| Emitting Color | Yellow, Cold White, White, RGB, Warm White |
| Wire | 2wire, 3wire, 4wire |
| IP Rating | IP20 |
| Certification | CCC, CE, C-tick, ETL, RoHS, SAA |
| LED Chips Brand | CREE/Luminus/Citizen |
| Input Voltage | 220-240V / 100-120V / 100-277V AC, 50-60Hz |
| Angle | 25°X75° |
| Product Weight | 0.6kg |
| Working Time (Hours) | 50000 |
| Terms of Payment | T/T |
| Update Time | Nov 21,2024 |
Detail Information
Specification
Model No.
LS-RGBW50N60-24-16512-192
Power
19.2W/m
PCB width
10mm
Lumen output (RGBW, W=4000K)
Total 950 Lm/m CRI80+
605 Lm/m RGB
420 Lm/m CRI 80+
360 Lm/m CRI 90+
320 Lm/m CRI 95+
MAXRUN
5m
LEDs/m
5050 RGBW 60LEDs/m
Cut Length
100mm (6LEDs)
CRI(White)
White CRI 80+~95+
CCT/Color
RGB R:620-625nm G:520-525nm B: 465-470nm / White 2400~6500K
Voltage 24V DC
Dimmable
Yes (SPI/DMX control system)
IP Rating IP20
Ambient temp.
-35°C ~ 50°C
Beam Angle
120°
Strip length/reel
0.5m ~ 50m
Lifespan
50,000Hrs
